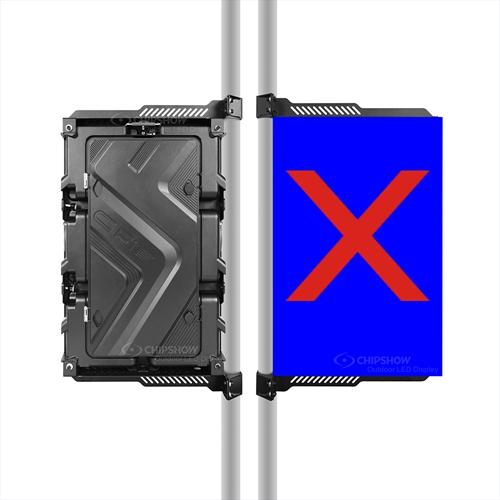

C-Fit-Pole P4 LED display - Street light pole LED screen

Features 1 The pole LED screens are supported by steel hoops mounted on lamp poles; so the installation is quite simple and quick; 2 This series offers you a smart method to implement cluster control of LED pole screens - you can remotely, massively control all the pole LED screens through 5G networking; 3 With an IP65 protection rating, the Pole LED screens can be suitable for outdoor use throughout the year; 4 The print ads on the screens are replaceable; so when it comes to print advertising, the screens can be repeatedly used after installation; 5 The C-Pole series can produce a strong visual impact on the eyes – you can light up the pole screens to display ads 24 hours a day; 6 There is a large information capacity; you can create the rich programs by yourself and play them based on a schedule that you set; it is widely adopted as a low-cost, environmentally friendly advertising solution;

Features: 1 High brightness - every LED module adopts LED beads with optical lens filters; the brightness level can reach 8000 CD /㎡; 2 Energy-saving – compared with LED display screens that have a similar specification, this series can save more than 65% of energy; 3 Ultra-strong penetration: it can show drivers clear images, even though they are driving 120 KM per hour, in a far distance that is more than 210meters, or in foggy weather; 4 High protection - every LED module and every cabinet are fully enclosed, and both the front and rear of the screen are IP65 rated; 5 Quick maintenance – the simple and quick assemble and disassemble design will save you a lot of time significantly during installation and maintenance; 6 Ultra-light: the weight of every finished cabinet is less than 35kg/㎡, therefore, it does not have a strict requirement on the strength of the supporting structure, and is quite suitable as large LED display screens on highways; 7 High reliability: to ensure the reliability and stability of the screen under all kinds of bad weather conditions, the screen adopts high-quality LED beads, IC, and power supply units;

1.  High brightness and energy saving: 3.2/4.2V low-voltage power supply, 4535 3in1 high brightness Leds, brightness ≥ 10000CD/㎡; The brightness can be adjusted automatically; 2.  HD display: Above 210 meters (vehicle speed 120) in dynamic, and can still be clearly visible in more than 250 meters in static distance in foggy weather; It can still display the road conditions in high definition to warn and guide vehicles to pass safely and efficiently; 3.  Efficient heat dissipation: Large flow negative pressure heat dissipation in the cabinet, efficient heat discharge, and more stable operation of LED display; 4.  Solar charging+9.6KWH large capacity battery, which can continuously power on the LED display 365 days a year; 5.  Hydraulic lifting+ rotating structure; The whole screen hovers at 1M height and 360 ° to play information at any height and angle. 6.  Double safety towing structure, 10mm safety chain, 80 level towing hook ring with safe and convenient dragging. 7.  7-core signal connector can control EMARK certified trailer indicator, brake light, turn light and side light in the whole vehicle. 8.  Support GPS positioning; Support U disk/mobile phone/tablet/computer/4G/WiFi playback; Support video and picture playback such as MP4/AVI/jpg/; 9.  It is mainly used for high-speed gantry and F frame traffic guidance; Safety warning signs for road repair vehicles, cleaning vehicles, sanitation vehicles and other road operation vehicles.

High brightness and energy saving: 2.8/3.8V low-voltage power supply, ICE high brightness lamp, automatically adjust the brightness; HD display: Above 210 meters (vehicle speed 120) in dynamic, and can still be clearly visible in more than 250 meters in static distance in foggy weather; It can still display the road conditions in high definition to warn and guide vehicles to pass safely and efficiently; Efficient heat dissipation: Large flow negative pressure heat dissipation in the cabinet, efficient heat discharge, and more stable operation of LED display; Solar charging+9.6KWH large capacity battery, which can continuously power on the LED display 365 days a year; Hydraulic lifting+ rotating structure; The whole screen hovers at 1M height and 360 ° to play information at any height and angle. Double safety towing structure, 10mm safety chain, 80 level towing hook ring with safe and convenient dragging. 7-core signal connector can control EMARK certified trailer indicator, brake light, turn light and side light in the whole vehicle. Support GPS positioning; Support U disk/mobile phone/tablet/computer/4G/WiFi playback; Support video and picture playback such as MP4/AVI/jpg/; It is mainly used for high-speed gantry and F frame traffic guidance; Safety warning signs for road repair vehicles, cleaning vehicles, sanitation vehicles and other road operation vehicles.

1.  New ultra-bright and energy-saving smart LED display; Brightness≤10000cd/㎡; Average power consumption ≤ 150W/㎡; 2.  Low framework cost: Fully enclosed module+bracket=large screen, saving the cabinet and framework cost; 3.  640 * 320mm large module, good flatness; users can quickly assemble signs of different sizes; 4.  Low transportation cost; Light-weighted module; ≤ 25KG/㎡, small volume and light-weighted, saving storage and transportation costs; 5.  Wall mounted design, module, power supply and the control system can be maintained from front and rear, easy for maintenance; 6.  Fast installation: Fast lock installation, two in one signal and power cable with fast connection, labor saving, beautiful cabling; 7.  Low noise: no fan is designed to ensure the noise less than 25 decibels. 8.  High protection level: IP65 front and rear, 9.  It is specially designed to provide an overall solution for high-end displays such as outdoor commercial advertisements, road advertisements, door head advertisements and window advertisements.

Quick Details • Cabinet size: 1280*960mm/pcs • Brightness: 6000~6500nits • Front and rear maintenance Advantages • New stadium base design，The angle between the screen and the ground can be adjusted from 30° to 90° to ensure the viewing angle of the audience. • Soft face shield protection, athletes and LED screens are perfectly protected. • The cabinet is made of cast aluminum, which is light and thin, and has good heat dissipation, which slows down the aging of the power module. • The module can be maintained quickly and the operation is simple and convenient. • High protection, protection level ≥IP65. • Strong compatibility, both indoor and outdoor courts can be hoisted and stacked to meet the needs of customers in multiple occasions. • Energy-saving, about 1/3 energy-saving than the traditional screen, greatly reducing the operating cost of the display. • Professional stadium playback software, diversified input of camera video sources, support for DP, HDMD, VGA, SDL, DVD, etc.

C-Max (p1.25/1.37/1.53/1.66/1.86/2/2.5/3/3.3/4) is our recommended option when it comes to LED screens for indoor use; this series is simple and durable; it has the same proportion of video source as LCD screens, and hence can directly replace LCD. Advantages: 1. 640mm*480mm cabinet size. can be assembled into 4:3/16:9 large screens. 2. Directly mounted on the wall, save space and labor. 3. The cabinet is made of die-casting aluminum, which is light in weight. 4. Wall-mounted installation, front service for modules, power supply units, and cards. 5. Flatness, easy to install and disassemble. 6. The cabinet adopts simple internal wiring, which helps users splice the cabinets. 7. Perfect design of lamp board PCB, high-end IC, showing high grayscale, refresh, and brightness. 8. Good heat dissipation, no noise, energy saving, and environmental protection. Applications: Widely used in commercial display, indoor fixed advertising, auditorium, conference room, banquet, vestibule, exhibition demonstration, transportation, studio, and command control.

Features: 1 High reliability: C-Max COB series LED screens are water-proof protection, moisture-proof, and easy to clean; 2 High durability: the surface hardness of the COB LED screen reaches 4H; this significantly reduces the likelihood of dead LED lights caused by collision during movement and installation; 3 Good compatibility: the pixel pitches of the C-Max COB series is available in 1.25mm, 1.53mm, and 1.86mm; the cabinets can be compatible with our C-Max series (P1.2/1.3/1.5/1.6/1.8/2/2.5/3/3.3/4) modules; so when it comes to further solution upgrade for higher quality images, it can save you a considerable cost in cabinets; 4 Ultra light and thin: the cabinets are made of magnesium alloy which is characterized by light weight, thin thickness, and elegant appearance; 5 Wall-mounted installation: the system cards, power supply units, and modules support front service, which saves space greatly and is quite suitable for high-end commercial scenarios; 6 Compatible screen proportion: the aspect ratio supports 16:9 or 4:3, which is compatible with LCD aspect ratios; so it will be very convenient if you consider replacing your LCD video walls with our C-Max COB series LED video walls; 7 Wide applications: the C-Max COB series can be applied in various indoor scenarios, such as auditorium rooms, conference rooms, exhibition halls, CCTV centers, and traffic command centers;
