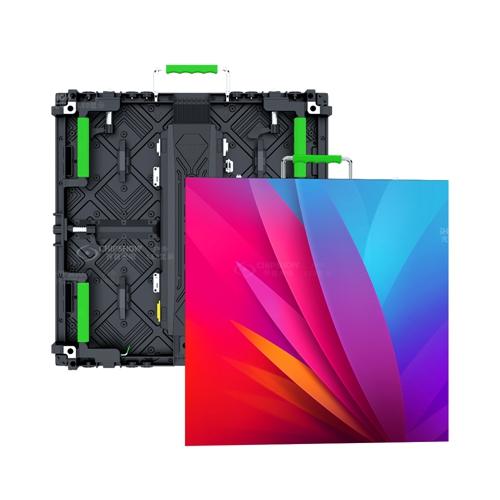

C-Lite-Plus event screen, low budget rental display solution (P2.6/2.9/3.9/4.8)

Product Features: 1 High precision: the screens adopt high precision die-cast aluminum cabinets; 2 Light weight, utra-thin: the weight of a cabinet (size:500*500 mm) is lower than 7kg, and the thickness of a cabinet is lower than 81mm; 3 Quick assembly and disassembly: the cabinets are available in 2 sizes (500*500mm, 500*1000mm); and you can splice up and down cabinets with different sizes; 4 Every cabinet adopts quick-dismantling control box for the convenience of quick disassembly of the screen; 5 Arc locks (optional): with the use of arc locks, you can splice large screens with a corner 90°angle, arc angles ranging from -10°to 15°, etc; 6 One-key unlocking design for modules: just with a spinning key, you can disassemble and maintain a module; 7 Mute working: the C-Shine-Plus series adopts no-fan design, and the working noise is under 40DB; so it does not influence the live acoustic and visual effects; 8 Background screen optimization: from the point of display effects, the C-Shine-Plus series is characterized by high refresh rate, SLR, shutter speed of 1/3000s, no ghost, and no flicker; hence, it is a optimized display solution for stage backgrounds; 9 Wide application: the C-Shine-Plus series includes outdoor and indoor stage screens; it provides comprehensive display rental solutions for conferences, stage designs, trade shows, and product launches; and the pixel pitches of the outdoor stage screens are also available with P1.9, P2.6, P2.97, P3.91;

Features: 1 The cabinets are constructed from die-casting aluminum material, which ensures high precision assembly of cabinets; in addition, the cabinets are light in weight and ultra-thin; 2 The C-Beetle series supports front maintenance; the modules as well as power supply units can be quickly assembled and disassembled; 3 The automatic color correction and point-by-point color calibration ensure uniformity and consistency of displayed images; 4 Its ultra-wide viewing angle (H160°/V140°) ensures the audience at different sides can clearly view the displayed images; 5 It outputs high-quality images; no mosaic phenomenon, no graininess, no ghost scanning lines, no flicker, shooting with an SLR shutter that speeds up to 1/3000s, and a high refresh rate; 6 The C-Beetle series is widely used in scenarios that require professional, high-definition background display solutions, such as exhibition halls, museums, conference halls, and so on;

Flatness: ADC12 high strength die-cast aluminum cabinet, which can be assembled and disassembled frequently without deformation, good flatness. Practical: Simple and practical design, firm handle, convenient fast lock, simple and practical. Can be quickly assembled, disassembled and maintained from front and rear Strong and firm：The handle is integrated with the horizontal and longitudinal stiffeners to ensure no deformation when fixed and rental installations. Magnetic design：The magnet between the cabinets are accurately positioned and installed, and very cost-effective for rental installation. Over 5000m² global sales volume. Ready stock and fast delivery. Applied to rental displays such as commercial squares, large-scale events, theater stages, exhibition displays, and new product launches.

1. Flatness: ADC12 high strength die-cast aluminum cabinet, which can be assembled and disassembled frequently without deformation, good flatness. 2. Practical: Simple and practical design, firm handle, convenient fast lock, simple and practical. 3. Magnetic design: The magnetic module can be maintained from front and rear; the magnet between the cabinets are accurately positioned and installed, and very cost-effective for rental installation. 4. High protection: Corner protection+ anti-collision boss; Fully automatic protection of the surrounding Leds to avoid damage during transportation and installation; 5. Dual backup: Dual electric and signal backup can be selected to effectively solve the following problems: black screen, display error and unstable picture. 6. Over 5000m² global sales volume. Ready stock and fast delivery. 7. Multi applications: Support multiple installation methods such as floor-based mounting and hanging installation, and focus on providing customers in the fields of energy, justice, military, transportation, public security, finance, IT, etc. with overall solutions for visualization, intelligence, informatization, and digital LED display systems.

Features: 1 Practicalness: the modules adopt a simple and practical design that is characterized by convenient fast locks and firm handles; 2 Front and rear service: the LED screens can be assembled, disassembled, and maintained quickly from both front and rear; 3 Strong and durable: every handle is integrated with horizontal and horizontal stiffeners to avoid deformation during fixed installation, and hanging installation for rental use; 4 Magnetic design (optional): you can opt to use the upper and down magnets between cabinets to position and install quickly; from the point of installation for rental services, this type of LED screen is very cost-effective; 5 Hot selling: so far, more than 5000㎡ of the C-Lite-Plus series LED screens have been sold all over the world; we guarantee enough stocks and fast delivery; 6 Wide application: the C-Lite-Plus series is quite suitable as rental LED display screens for theater stages, exhibition shows, product launches, commercial squares, large sports events, etc;

1 The cabinets are made of die-cast aluminum and adopt ultra-light and ultra-thin design; the thickness of a cabinet (size:500*500mm) is only 87mm, and the cabinet weight is lower than 6.8kg; 2 The curved cabinets can be spliced with planar cabinets from the left and right sides; by the way, the C-Arc series can be spliced together with our C-Shine series (P2.604); so you can make cabinets with more shapes; 3 As a type of concave-convex curved LED screen, the curved angles (the angles of inner and outer arc) that the C-Arc series allows range from -30° to 30°； 4 The modules adopt soft PCB boards with special layout designs; this ensures that the arc surface of the screen is always smooth; 5 The cabinets adopt a no-fan design; the generated noise is always under 40DB when the screen is working; this will not impact the live visual and acoustic effects; 6 The C-Arc series presents HD visual effects – by the technology of white balance and point-by-point color calibration, the high uniformity and consistency of the images are guaranteed; 7 3 cabinets can be put together into a screen with a 90°arc; in other words, 12 cabinets can form into a circular-shaped screen; 8 As curved LED screens, the C-Arc series is widely used as stage screens for rental services, and mainly applied in trade shows and indoor stage shows; in addition, it can also be applied as indoor fixed screens;

With the characteristics of High transparency rate, invisible installation, ultra light & thin, it is very good to help business branding. Advantages 1. Ultra-light and thin, the transparent part is only 3mm; 2. Using high-end PC materials with high-transparent and high-temperature resistant, good color consistency. 3. The perfect ultra-narrow design of the light board PCB can easily achieve a transparency rate of up to 60%. 4. No fan power supply, quiet and noiseless. 5. It can be directly stuck to the glass or hanging installation, quick and worry-free. 6. Hidden design, all cables are stored in the control box, beautiful and generous appearance. 7. The screen can be spliced left and right or up and down, which can achieve a display height or width of 1.92 meters and unlimited splicing in the other direction. Installation Directly glued to transparent glass or hanging installation Application Stage event, shopping mall, chain store, science museum, glass window, glass curtain wall building, leasing industry, New retail, etc.

1.  High brightness and energy saving: 3.2/4.2V low-voltage power supply, 4535 3in1 high brightness Leds, brightness ≥ 10000CD/㎡; The brightness can be adjusted automatically; 2.  HD display: Above 210 meters (vehicle speed 120) in dynamic, and can still be clearly visible in more than 250 meters in static distance in foggy weather; It can still display the road conditions in high definition to warn and guide vehicles to pass safely and efficiently; 3.  Efficient heat dissipation: Large flow negative pressure heat dissipation in the cabinet, efficient heat discharge, and more stable operation of LED display; 4.  Solar charging+9.6KWH large capacity battery, which can continuously power on the LED display 365 days a year; 5.  Hydraulic lifting+ rotating structure; The whole screen hovers at 1M height and 360 ° to play information at any height and angle. 6.  Double safety towing structure, 10mm safety chain, 80 level towing hook ring with safe and convenient dragging. 7.  7-core signal connector can control EMARK certified trailer indicator, brake light, turn light and side light in the whole vehicle. 8.  Support GPS positioning; Support U disk/mobile phone/tablet/computer/4G/WiFi playback; Support video and picture playback such as MP4/AVI/jpg/; 9.  It is mainly used for high-speed gantry and F frame traffic guidance; Safety warning signs for road repair vehicles, cleaning vehicles, sanitation vehicles and other road operation vehicles.
