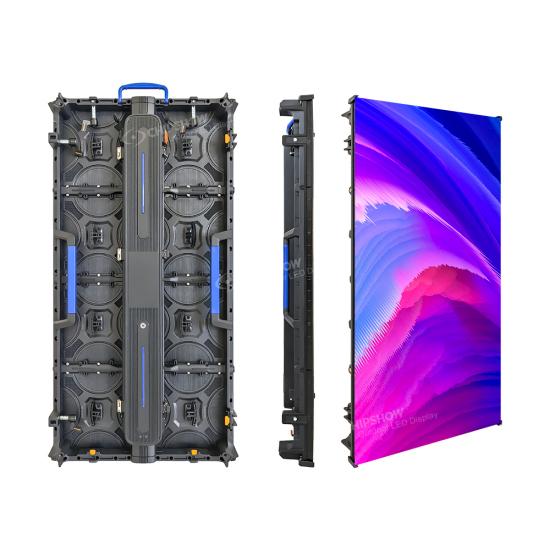

C-Eco P3.91 stage rental LED display

P0.95,P1.26,P1.58,P1.9 C-Pad-U is quick & easy wall mounting solutions, designed in a perfect 16:9 ratio to get HD 2K 4K LED video wall and camera friendly display. Features: • Golden ratio 16:9, cabinet size 608*342mm, 4 cabinets form a 55 inch LED display. • Magnetically modules and fully front serviceable design, easy installation and maintenance. • Lightweight tiles design allows it to be easily packed and stacked. • Internal cabling is all quick release allowing for tool less service. • 3840Hz refresh rate which eliminates scan lines and flicker in your display on camera. • 160° horizontal and vertical viewing angle and increased grayscale capabilities. Application: Widely used in auditorium, conference room, banquet hall, secturity monitoring, command system, etc.

Module features： 1,Easy：Modular design, easy assembly and maintenance. 2，module size：250*250mm ,Smooth surface, module gap small ，High precision Cabinet features： ●  Light：Cabinet size:500*500*86mm, Weight: 8.5kg/pc. ● Thin：Die-cast aluminum design, high precision, thickness only 86mm. ● Fast：Fast locks, Easy to assemble and disassemble. ● Compatibility：Available pixel pitch for P2.6，P3, P3.91，P4, P5, P6. ● Low：Excellent cooling design, no fans or air-conditioners needed noiseless, low power consumption, cost-effective.

Portable traffic warning sign is for traffic accident scenes, security checkpoints, drunk driving inspections, and various emergencies. Features 1. Foldable, use linkage system, flexible retractable 2. With pneumatic lifting function 3. Eight-shaped base support frame, wind-resistant design, open with one click. 4. With wheels and handles, easy to carry 5. Equipped with warning lights and display 6. Built-in black box and high-definition camera (optional)

This LED display excellent for outdoor installation of glass curtain wall. No need of steel structure while installation, educing steel structure weight 50kgs/m2, 60%-80% transparency, making glass curtain wall more vivid and without affecting the views. Advantages: 1. Light weight, thin and transparent 2. Transparency ratio up to 63% 3. Strong adaptablity 4. Low power consumption 5. Front and rear serviceable 6. High-cost effective witnout supporting structure 7. Fast plug in and out the power cable and signal cable Application: outdoor upper-air glass curtain wall, outdoor partition wall, exhibition hall, airport, park landscape etc.

C-Vent, ventilating leads to high heat radiating, no need fan or air-conditioner, reducing 50% energy consumption. Advantages: 1. Ventilating: Air can transmit the display body directly, ventilation rate 50%. 2. No light penetration: Penetrating design without light penetration, no harm to contrast ratio, full conservated the display effect. 3. Front access: Front-maintenance module is convenient for disassembly and assembly. 4. Low windage resistance: Lower requirement of steel structure, 35% structure cost saved. 5. Air-conditioner exonerated: Ventilating leads to high radiating, no need fan or air-conditioner. 6. Energy-saving & environmental protection: Low power consumption, 50% energy saving. 7. High applicability: IP65 fully sealing design, rain proof, dust proof, adapted to all weather surroundings.

Simplicity and durable, indoor commercial preferred. • 640x480mm cabinet size, it can be assembled with a variety of 4:3 and 16:9 LED large screens, directly mounted on the wall, saving space and labor. • The same proportion of video source as LCD, directly replacing the original LCD. • Widely used in auditorium, conference room, banquet hall, security monitoring, command system. Module features: • Easy: Modular design, easy assembly and maintenance. • Module size: 320*160mm, Smooth surface, module gap small, high precision Cabinet features: • Light: Cabinet size: 640*480*72.5mm, Weight: 7.5kg/pc. • Thin: Die-cast aluminum design, high precision, thickness only 72.5mm. • Fast: Fast locks, Easy to assemble and disassemble. • Compatibility: Available pixel pitch for P2.5, P3, P3.3, P3.91, P4, P5, P6. • Low: Excellent cooling design, no fans or air-conditioners needed. noiseless, low power consumption, cost-effective.

The C-lite series is a type of highly cost-effective rental LED screen for varieties of activities; the die-casting aluminum cabinets with fast locks and convenient cable connectors will help users install & disassemble quickly and easily. Meanwhile, you can also add scale locks to make a curved LED screen. Features: 1. Pixel pitch: 2.6, 2.97, 3.91, 4.81mm (outdoor and indoor) 2. Size: 500*500/500*1000mm 3. Modules magnetic installation (indoor), fast assembly, and fast dismounting. 4. The cabinets of different batches are of the same size, solid and durable, and not easy to deform. 5. Casting aluminum cabinet, ultra-high flatness, whole cabinet flatness≤0.01mm. 6. Power and data connected fast, long life devices, 500,000 times pull and plug. 7. Easy operation, one click to light up the screen. Application: Rental screens for weddings, conferences, concerts, launch events, and all kinds of activities; also can be used as mobile display solutions and permanent display solutions, such as led screens for mobile trailers, and stadium perimeter display screens.

Quick Details • Cabinet size: 1280*960mm/pcs • Brightness: 6000~6500nits • Front and rear maintenance Advantages • New stadium base design，The angle between the screen and the ground can be adjusted from 30° to 90° to ensure the viewing angle of the audience. • Soft face shield protection, athletes and LED screens are perfectly protected. • The cabinet is made of cast aluminum, which is light and thin, and has good heat dissipation, which slows down the aging of the power module. • The module can be maintained quickly and the operation is simple and convenient. • High protection, protection level ≥IP65. • Strong compatibility, both indoor and outdoor courts can be hoisted and stacked to meet the needs of customers in multiple occasions. • Energy-saving, about 1/3 energy-saving than the traditional screen, greatly reducing the operating cost of the display. • Professional stadium playback software, diversified input of camera video sources, support for DP, HDMD, VGA, SDL, DVD, etc.
