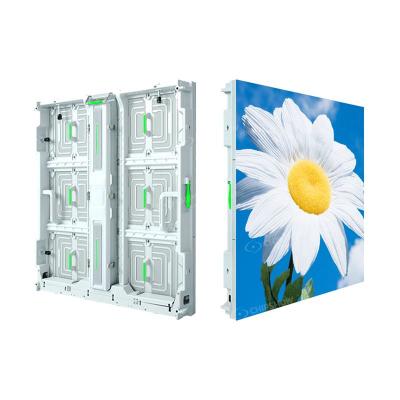

1 It adopts the plug-pull installation method: every cabinet comes with guide rails, and can be quickly plugged in and pulled out; this makes the disassembly and maintenance process simple; 2 The cabinet is made from high-precision aluminum profiles; this ensures the good flatness of the screen; 3 It is advisable to adopt the wall-mounted installation method; every module can be maintained from both front and rear; when you align all the modules in a straight line, the screen looks tidy; 4 High reliability: the fully enclosed modules plus IP65 plug-in components ensure the normal running of the screen in outdoor places; 5 The ultra-thin, ultra-light alloy cabinet will greatly save the cost of transportation and installation; 6 The C-Special stadium series is particularly used as a display solution for stadium walls, and stands around stadiums;

1 Good flatness: the screens adopt die-cast aluminum (tensile strength: ADC-12) cabinets for rental applications. The cabinets can be assembled and disassembled frequently without deformation; 2 Strong practicalness: the cabinets adopt a minimalist and practical design, such as convenient screw locks and firm handles. 3 Magnetic location (optional): the upper and lower side of cabinets can be retrofitted with extra magnetic location pins for speeding up installation time; 4 Economical: this series of screens is a low-budget display solution for rental use, and it is well received due to its stability and high performance-price ratio;

1 High brightness, energy saving: this C-Fit series adopts a 2.8V/3.8V low-voltage power supply that offers excellent energy efficiency, and meanwhile, the ICE LED beads deliver high brightness along with low power consumption; 2 Fine picture quality: it adopts the leading edge blanking circuit to eliminate ghost lines effectively; with the white balance under a low gray level, it achieves fine picture quality with no color deviation; 3 Ultra-thin: the cabinet uses die-casting magnesium alloy (weight of the empty cabinet: ＜15kg, weight of the finished cabinet: ＜35kg; thickness of the cabinet: 87mm); this makes it easy to transport and install the cabinets; 4 High-precision: every cabinet is made through the die-casting process and the CNC process, thus, every cabinet can be seamlessly spliced; 5 High protection level: the protection grade of the front side of the cabinet reaches IP65; the C-Fit series LED screens can withstand common outdoor conditions; 6 High-efficiency heat dissipation: the self-developed heat dissipation system ensures that heat in any corner of the cabinet can be dissipated quickly through doubled current and negative pressure; this ensures that the  LED screen can always run normally without problems of heat dissipation； 7 Fast installation:  every cabinet is connected with fast locks, and it just takes you 10 seconds to splice two cabinets; 8 Wide application: As a wall-mounted/hanging display screen, the C-Fit series can be widely used in a variety of outdoor public places, such as stadiums, shopping malls, docks, bus stations, schools, and roadsides;

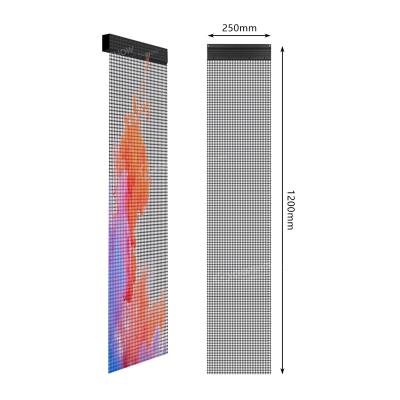

Professional advertising display screen for indoor transparent glass wall: 1: Ultra-light and ultra-thin: the weight of the aluminum cabinet is less than 5kg/m², and the cabinet has good resistance to deformation and extension; every cabinet is highly smooth and can be seamlessly spliced; this makes it easy for the transparent mesh LED screen to be mounted on a glass wall; 2: High transparency: the transparency rate reaches more than 40%; when the screen is displaying, the images look as if they are appearing in the air; 3: Customizable background color: the background color of the display screen can be customized according to specific requirements (for example, if the color of the wall is black, the background color of the screen can be set to black); during daytime, the transparent mesh screen does not change the building’s original style when it does not work; 4: Easy to install and maintain: the transparent mesh screen can be installed and disassembled from the front, and all the connectors adopt professional-grade aviation plugs; the efficiency of installation and maintenance is high; meanwhile, the installation and maintenance cost is low; 5: No flicker, no ghosting: the light and shadow are smooth and natural; the mesh screen performs with a high frame rate and 16-bit grayscale lossless output; 6: Silent and energy-saving: it adopts a quiet no-fan design and autonomous ventilation system to dissipate heat effectively; compared with common transparent mesh screens in the market, the Chipshow C-Mesh series can save nearly 30% of the cost that should have been used in heat dissipation; 7: The C-Mesh transparent mesh screens are widely used in a variety of indoor commercial premises, such as shopping malls, hotels, tourist spots, fences around commercial properties, exhibition halls, retail stores, and glass-covered bridges;

Product characteristics： 1.Light and transparent: weight 15kg/㎡, easy to install and maintain, no support structure reinforcement, high efficiency; 2. Transparency: 35% permeability, so that the glass curtain into a realistic video wall, does not affect the outdoor view; 3. All-weather: low temperature, high temperature, humidity and other working conditions; 4. Low power consumption: using positive luminous LED lights, high conversion efficiency PFC power supply, large screen energy saving more than 50%; 5. Multi-purpose: curved box design, outer arc 10°, inner arc 10°; Can be fixed, can be leased; 6. No steel structure: Direct use of the original glass curtain wall steel structure, can reduce the weight of steel structure per square meter about 50kg;bout 50kg;

Features: 1 Thin and light: the C-Carbon series adopts a carbon fiber integrated frame that only weighs 12.5kg/㎡; this makes it easy to install and maintain ; 2 Good transparency: the transparency level reaches 65%; when mounted on a glass wall, the glass wall can be transformed into a vivid video wall; meanwhile, it does not affect the view of the glass wall; 3 Magnetic design: the C-Carbon series supports the front-&-rear maintenance; through magnetic modules, cabinets can be precisely located during installation; and the rental installation method is very cost-effective; 4 Heat dissipation design: it adopts smart temperature-controlled fans that can automatically regulate agitation rate according to the temperatures inside the cabinet; a lot of energy can be saved while it is working to improve the heat-dissipation efficiency; 5 High reliability: the waterproof grade of the front and rear of the modules reaches IP65; it can work normally under common outdoor conditions; 6 Wide application: it can support ground-mounted installation, wall-mounted installation, and hanging installation. It can be used as a versatile display solution for scenarios that are related to industries that include military, public security, justice, energy, transport, IT, and so on;

1 Excellent flatness, high resistance to deformation: the C-Shine-Plus (GOB) series adopts high strength（aluminum alloy grade: ADC-12）die-casting aluminum cabinets with good flatness and good resistance to deformation; even though the screen is frequently assembled and disassembled, the cabinets can still remain flat; 2 Practical design: following the principle of being practical and simple, the cabinets adopt a minimalist design, such as convenient fast locks, and wide & sturdy handles; 3 Magnetic modules: it supports front & rear maintenance of modules; through the magnetic location between cabinets, the display screen can be quickly and precisely assembled. 4 High protection performance: in addition to the GOB encapsulation technology that the modules use, the cabinets are equipped with anti-collision lug bosses and protective corners; so the surface of the screen is highly protective, which greatly avoids damage during installation and transportation; 5 The C-Shine-Plus (GOB) series supports hanging installation, and ground installation; as an economical and highly efficient display solution for all kinds of rental installation occasions (e.g.  stadiums, exhibition center, conference rooms, and theaters);

Features: 1 High-precision die-casting aluminum cabinets: the cabinets are quite light and thin; (the weight of each cabinet is less than 8kg, and the cabinet thickness is less than 79mm); 2 Good compatibility: the C-Rock series comes in two cabinet sizes (500mm*500mm, and 500mm*1000mm), and multiple cabinets with different sizes can be spliced up and down to meet users' assembly needs; 3 Quick disassembly: all the cabinets are equipped with quick-release control boxes for the convenience of quick disassembly; 4 Splicing with arc locks (optional): you can opt to use arc locks to splice cabinets together into a curved screen that supports -10° to 15°; 5 Front service: the C-Rock series adopts magnetic modules that support front maintenance; 6 Each cabinet is equipped with 2 captive screws to prevent assembly errors caused by vibration during movement; this ensures the longevity and performance of your application; 7 Easy operation: even a single person can accomplish the quick installation of the cabinets; it greatly helps reduce the installation costs; 8 Silent running: the modules do not use fans to dissipate heat; while working, its noise level is always under 40db; it does not affect the live audio-visual effects; 9 Suitable as large stage backdrop screens: the C-Rock series LED display screens have DSLR background effects, and its high refresh rate can catch up with the camera’s shutter speed up to 1/3000s with no ghosting and no flicker ; 10 Applicable for indoor and outdoor use: as a comprehensive LED display solution for stage performances, conferences, and events, the C-Rock series for indoor use is available in pixel pitches of 1.95mm, 2.604mm, and 3.91mm; and the C-Rock series for outdoor use is available in pixel pitches of 2.604mm, 2.97mm, 3.9mm, and 4.8mm;
